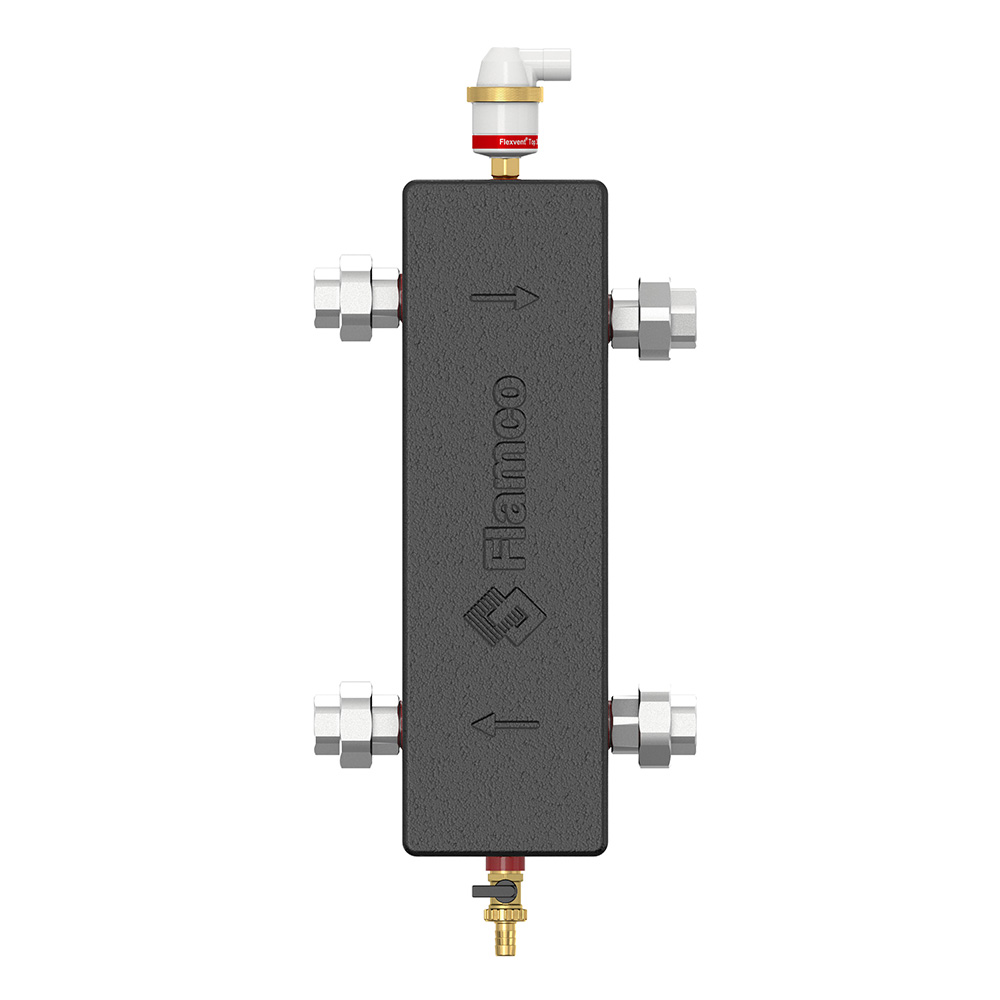

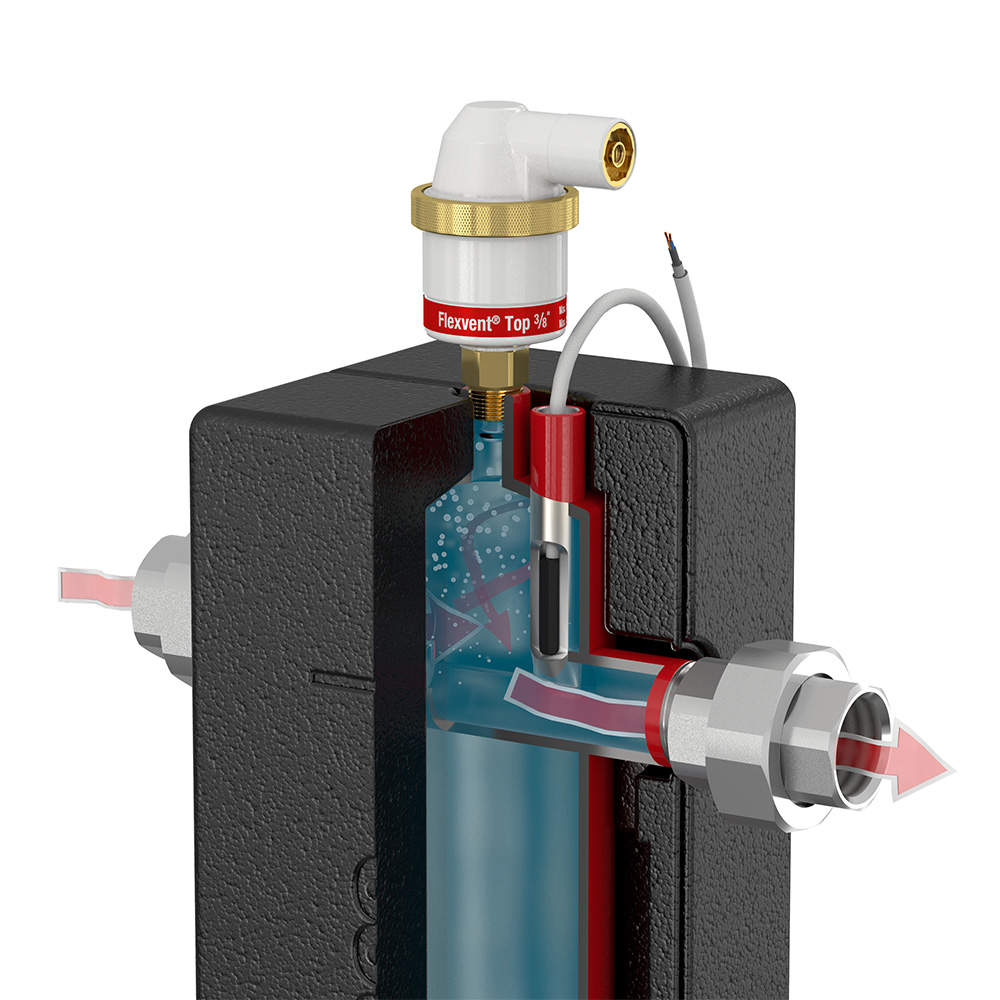

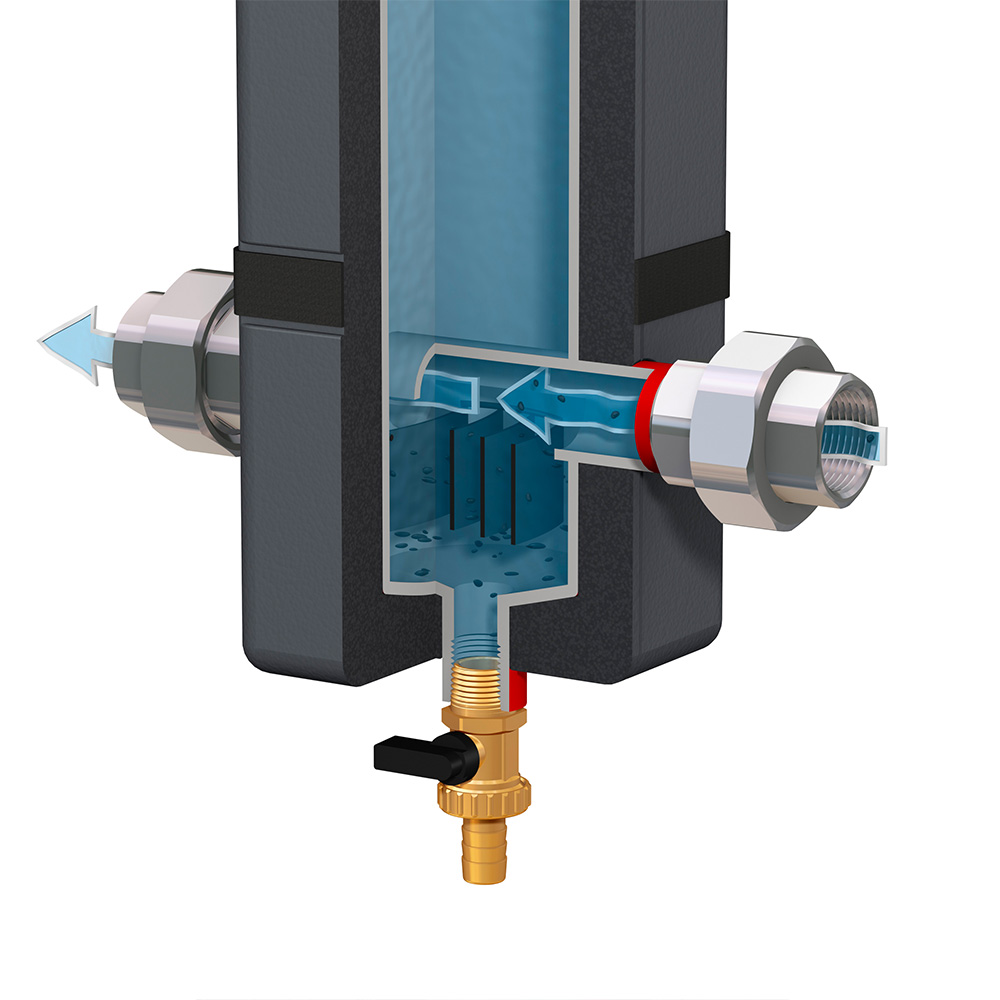

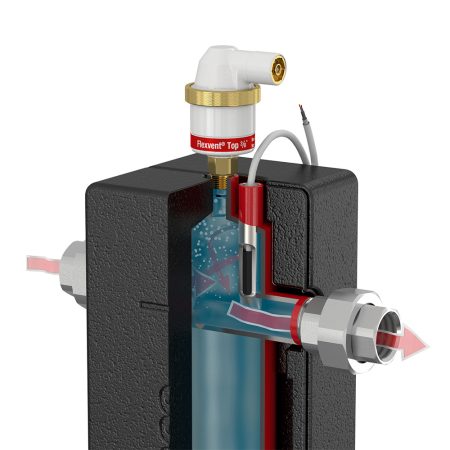

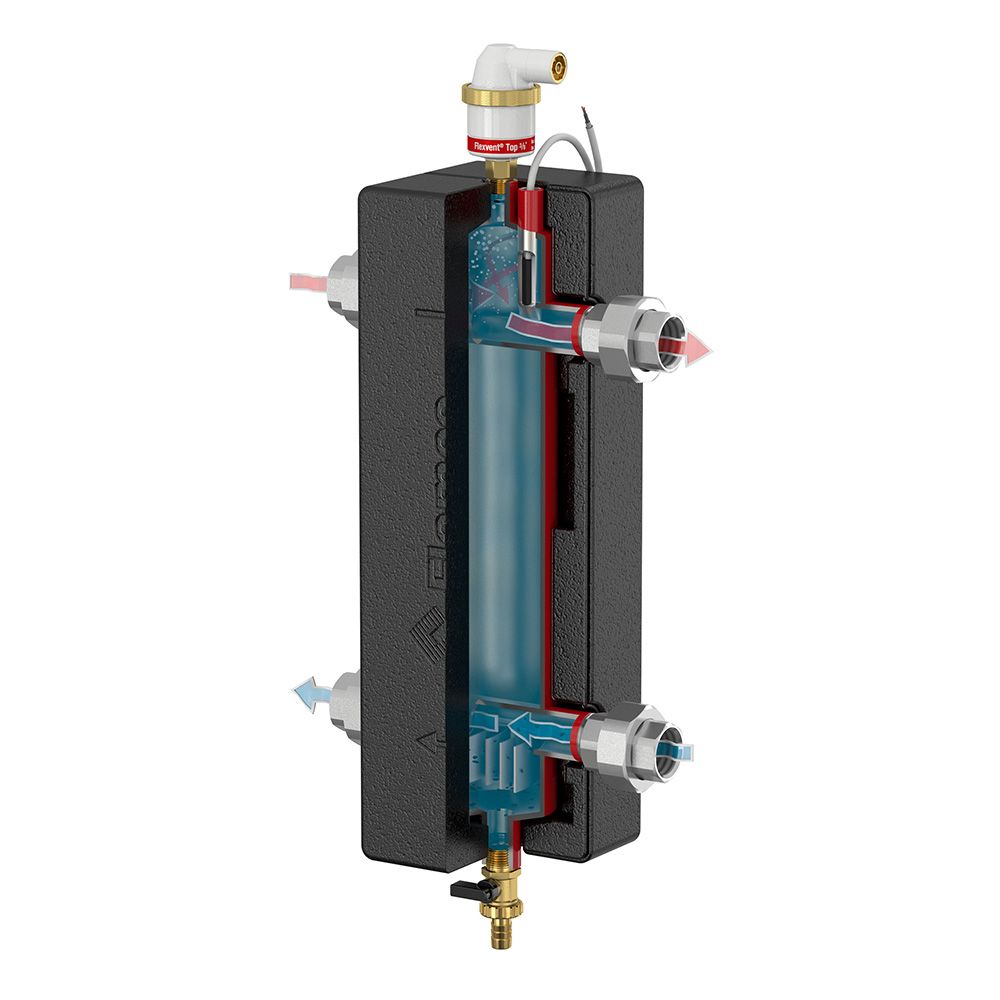

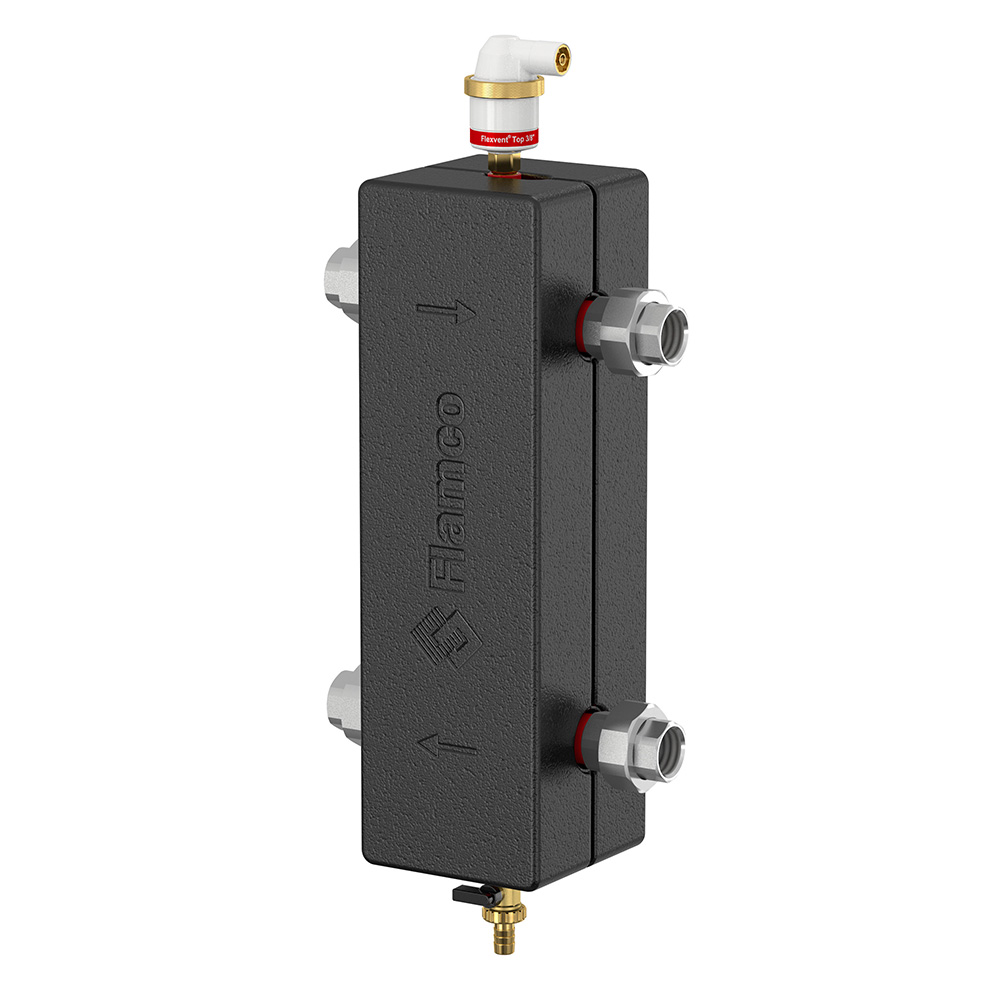

The NexBalance hydraulic separator makes primary secondary piping the easiest part of your installation. With built-in air and dirt separation, low flow resistance, and a built-in temperature sensor well, the NexBalance eliminates pump conflict and improves the heat transfer of your system.
Four easy connections means your time on the job is greatly reduced and the insulation jacket finishes your installation with a professional appearance while providing protection against heat loss.
• Combination unit provides primary secondary piping as well as air and dirt separation
• Complete with Flexvent, blowdown valve, and insulation jacket
• Integrated temperature sensor well
• Max. temperature rating of 230°F
• Rated for up to 50% glycol
Threaded NPT
Flamco has been involved in the development, production and sale of high-quality components for use in HVAC systems since 1956. It is part of the stocklisted Aalberts NV, instituted in 1975. Along with Nexus, which provides balancing & control products that increase comfort in buildings, the Aalberts hydronic flow control business unit was constituted. Stronger together, Flamco and Nexus will continue to build mission critical technologies to manage heating and cooling humanly with better financial and environmental efficacy. From source to emitter we partner with our customers to engineer seamless energy efficient hydronic systems for their building requirements.
