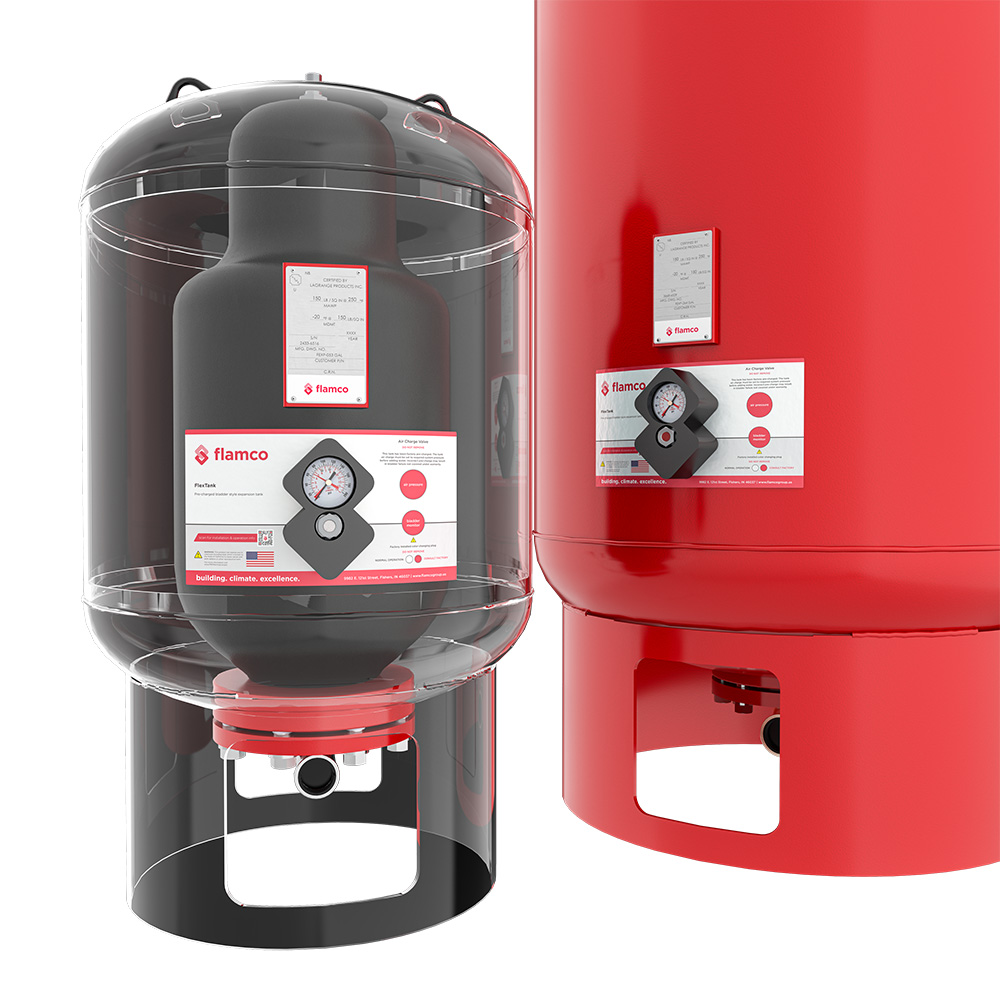

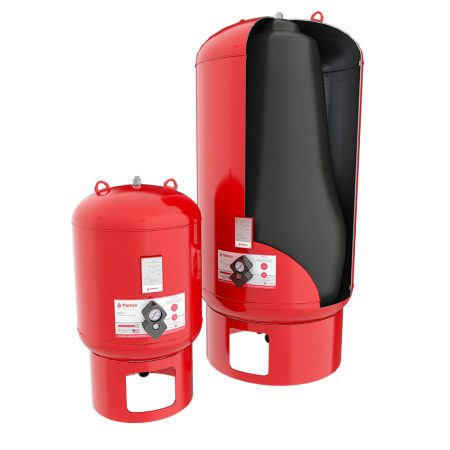

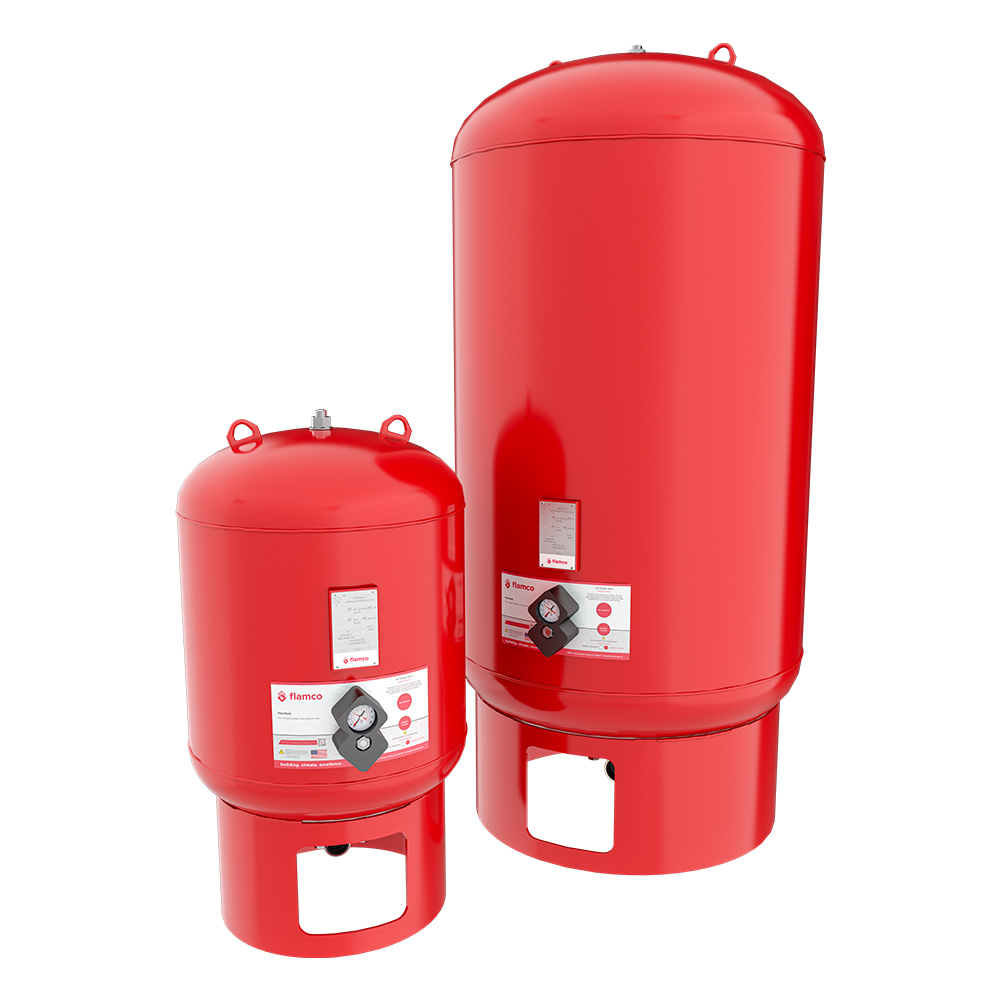

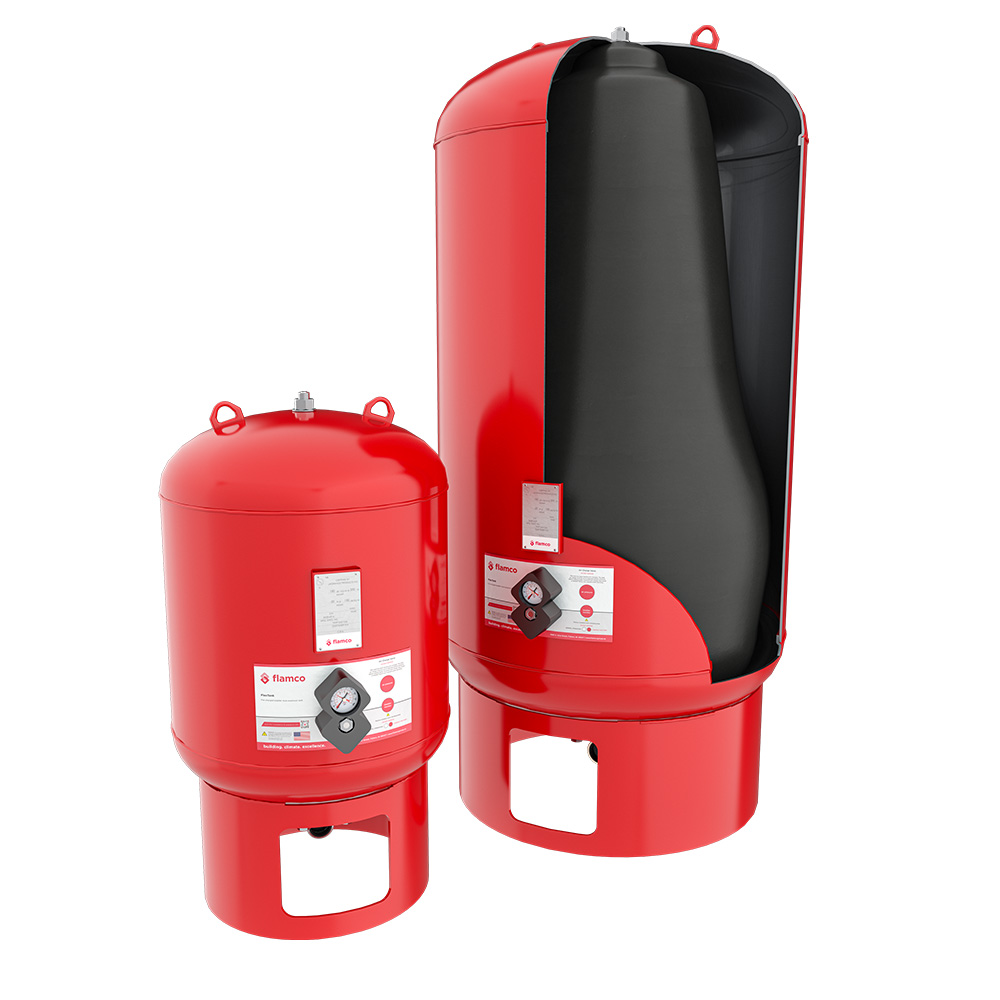

The NEX series ASME expansion tanks offer a removable bladder and are pre-charged. Designed to absorb expansion volumes and control the pressure in a heating or cooling system, the NEX series offers flexibility for the installing contractor with installation in either a vertical or horizontal position. The system fluid is contained in a full acceptance heavy duty butyl bladder that helps to prevent corrosion as well as waterlogging issues.
• Sensor port for pressure gauge
• Built in bladder integrity monitor
• Easily accessible air valve
• Secure guard mount
• Replaceable heavy duty butyl bladder
• Design pressure of 125 psi
• Factory pre-charged & field adjustable
• Full flow design compatible
• Manufactured in accordance with ASME Boiler and Pressure vessel code of carbon steel
· Closed loop hydronic heating · Hydronic cooling
· Heat transfer
· Water
· Up to 50% glycol
* Not suitable for potable water
| SIZE IN GALLONS 10 GAL - 211 GAL |
|---|
|
10 |
|
13 |
|
23 |
|
35 |
|
53 |
|
79 |
|
106 |
|
132 |
|
158 |
|
211 |
| SIZE IN GALLONS 264 GAL - 3,963 GAL |
|---|
|
264 |
|
317 |
|
370 |
|
422 |
|
528 |
|
660 |
|
792 |
|
1,056 |
|
1,320 |
|
1,320 |
|
1,980 |
|
2,640 |
|
3,963 |
