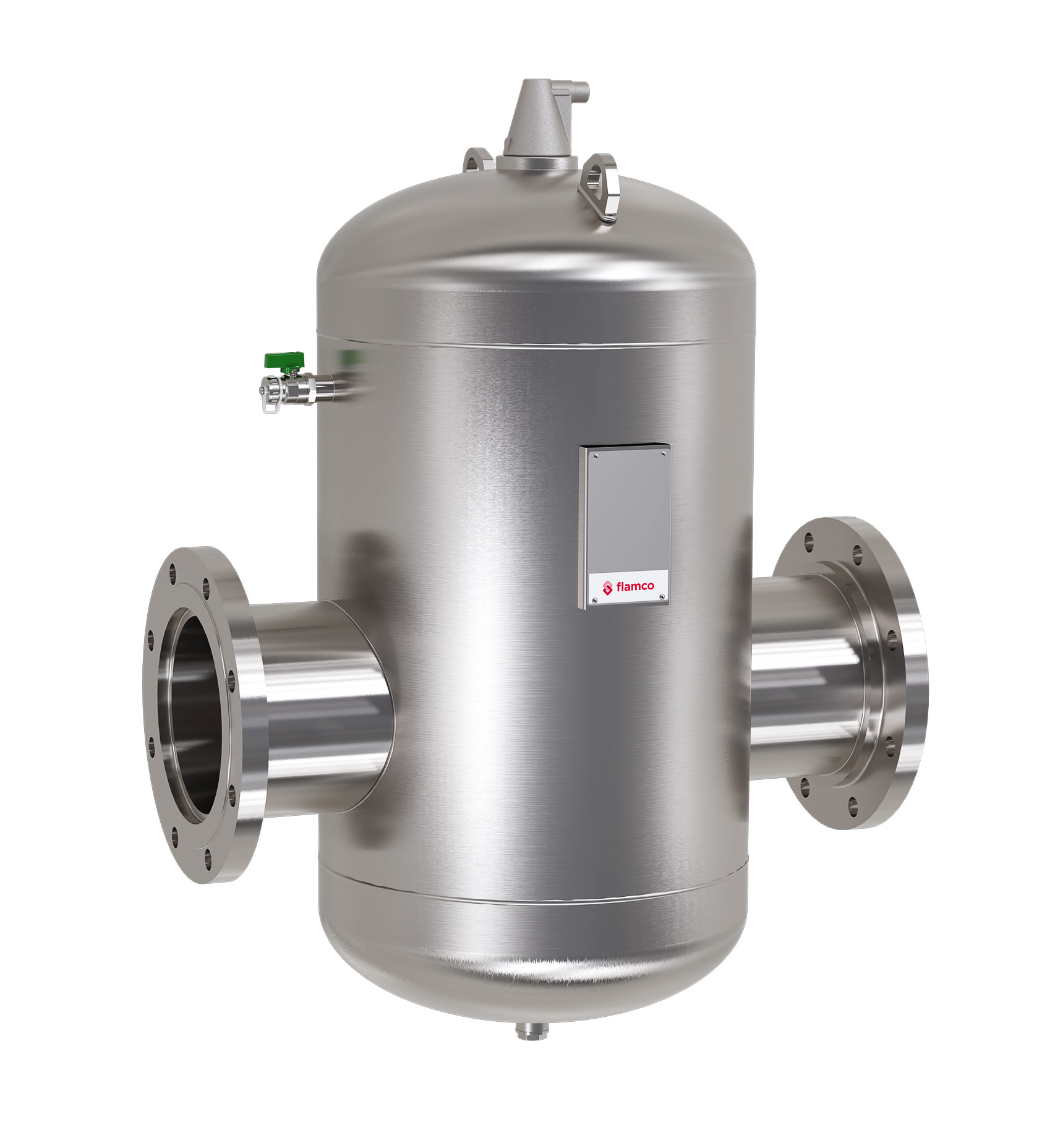

The commercial Flamcovent Smart Stainless Steel air separator removes the smallest microbubbles from the system water. The innovative non-clogging design ensures pressure loss in the system is kept to a minimum.
Advantages:
• Up to 60% better performance compared to conventional air separators
• Extremely low flow resistance resulting in less energy consumption

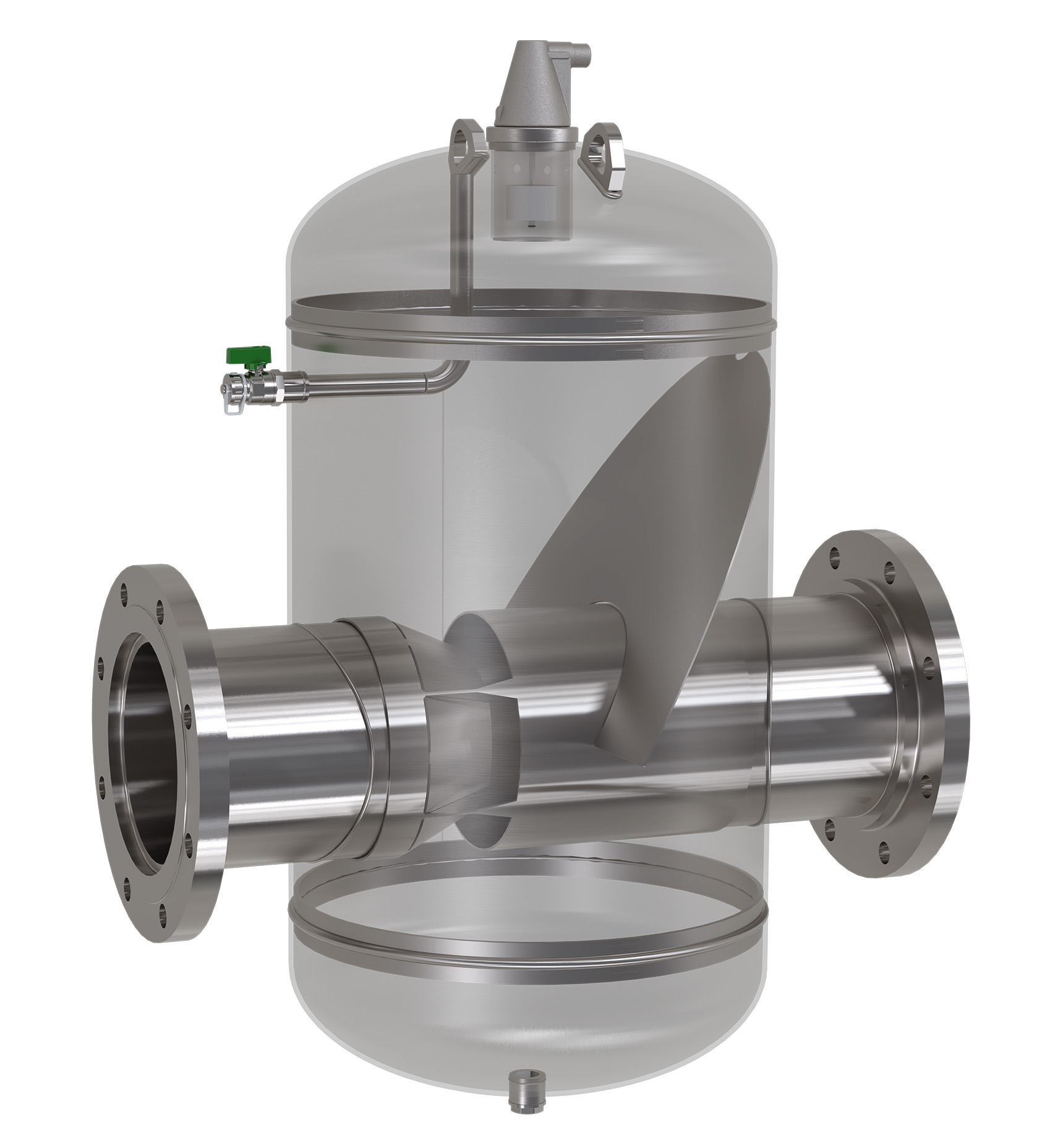

• Non-clogging design ensures continuous operation in demanding environments
• 316 Stainless steel construction for superior corrosion resistance
• Ideal vertical markets: Data Centers and other mission-critical applications
Max working pressure: 150 PSI
Min/max working temperature: 14°F / 250°F
Available in various sizes up to 2” – 10″
Glycol mixture up to 50%
Shell: 316 Stainless Steel
Separating Element: 316 Stainless Steel
Air Vent: 316 Stainless Steel
Drain Plug: 316 Stainless Steel
Flamco has been involved in the development, production and sale of high-quality components for use in HVAC systems since 1956. It is part of the stocklisted Aalberts NV, instituted in 1975. Along with Nexus, which provides balancing & control products that increase comfort in buildings, the Aalberts hydronic flow control business unit was constituted. Stronger together, Flamco and Nexus will continue to build mission critical technologies to manage heating and cooling humanly with better financial and environmental efficacy. From source to emitter we partner with our customers to engineer seamless energy efficient hydronic systems for their building requirements.
