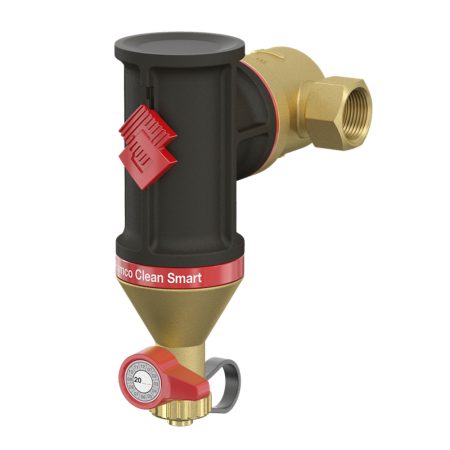

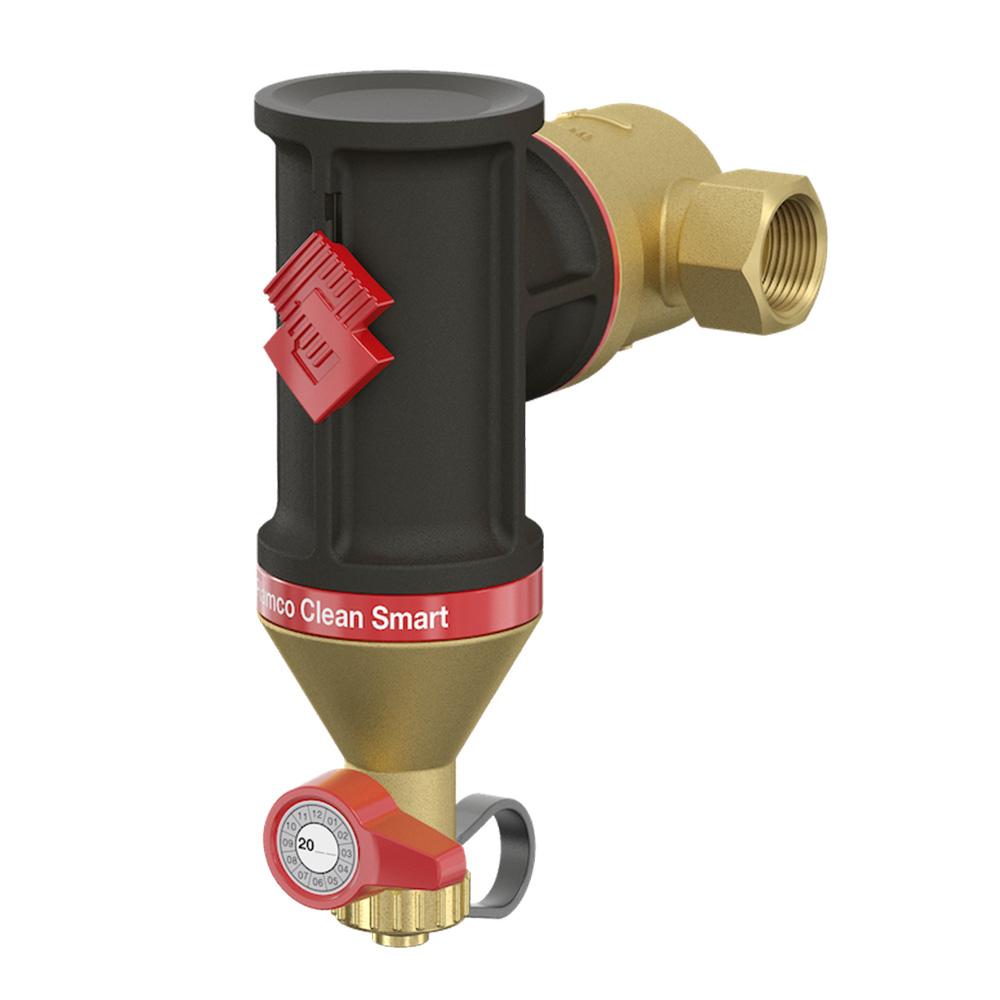

The Flamco Clean Smart dirt separators remove even the most minuscule dirt particles from the system water. They are virtually maintenance-free and have a negligibly low flow resistance. By substantially reducing the water velocity in the entrapment chamber the dirt particles are allowed to sink to the dirt collector at the bottom. A super magnet additionally contributes to trapping ferrous particles. The 360° rotating connection and compact dimensions of the Flamco Clean Smart series enable them to be easily installed even when space is limited. These dirt separators are the new standard for heating and cooling systems.
Four neodymium super-magnets are incorporated into the logo
Extremely low flow resistance and low loss of energy
Consistent performance throughout its service life
Can be used with all kinds of pipes
Compact dimensions, light weight
Min/max working temperature: 14°F/248°F
Max working pressure: 145 PSI
Shell: Composite
Separating Element: Composite
Dirt Collector Assy: Brass & Steel
Drain: Brass
Super-magnets: Neodymium
Flamco has been involved in the development, production and sale of high-quality components for use in HVAC systems since 1956. It is part of the stocklisted Aalberts NV, instituted in 1975. Along with Nexus, which provides balancing & control products that increase comfort in buildings, the Aalberts hydronic flow control business unit was constituted. Stronger together, Flamco and Nexus will continue to build mission critical technologies to manage heating and cooling humanly with better financial and environmental efficacy. From source to emitter we partner with our customers to engineer seamless energy efficient hydronic systems for their building requirements.
